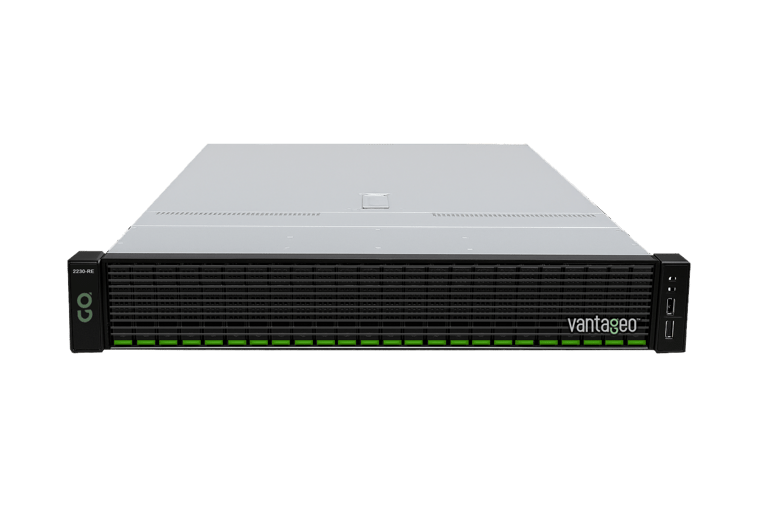

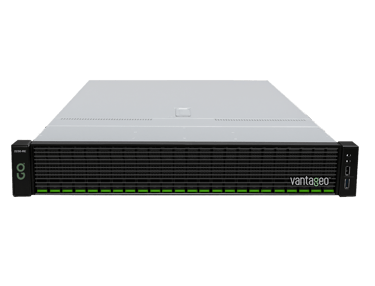

The Vantageo 2230-RE is a high-performance 2U dual-socket rack server powered by 3rd Gen Intel® Xeon® Scalable processors (Ice Lake). Designed for cloud, big data, and NFV workloads, it delivers exceptional compute density, storage flexibility, and reliability in a modular, streamlined design.

High Performance and High Density

• Dual 3rd Gen Intel® Xeon® Scalable processors (up to 40 cores/CPU) with 3 UPI links (11.2GT/s).

• 32 DDR4 DIMM slots (3200MT/s) with Advanced ECC support.

• Supports up to 28 NVMe SSDs for high-speed I/O performance.

High Scalability and High Bandwidth

• Flexible storage: 41x 2.5" or 20x 3.5" + 4x 2.5" hot-swap bays (SAS/SATA/NVMe).

• 14 PCIe 4.0 expansion slots (including OCP 3.0) for GPUs, NICs, and accelerators.

• Supports four high-performance GPUs for accelerated workloads.

Easy Management Maintenance

• Hot-swappable drives, power supplies, and fans with 1+1/N+1 redundancy.

• RAID 0/1/5/6/10/50/60 with power-loss protection

Energy Efficiency

• Vantageo Server Suite for out-of-band monitoring (CPU, memory, storage, power).

• IPMI 2.0, SNMP, and Redfish integration for third-party management.
