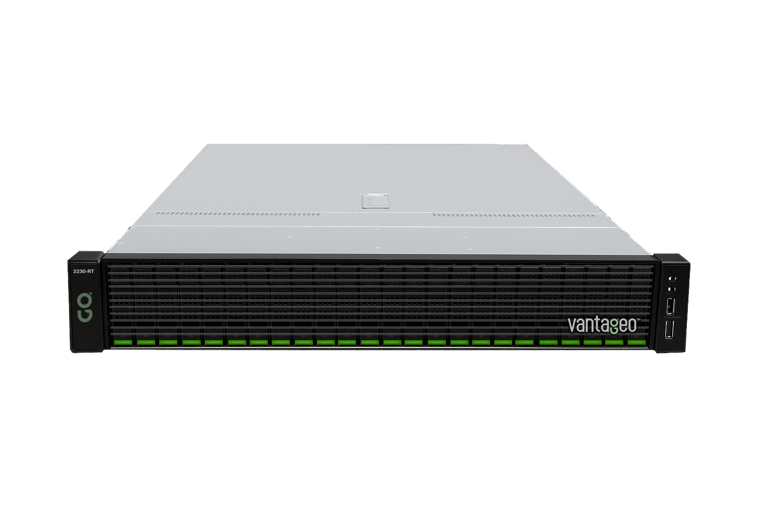

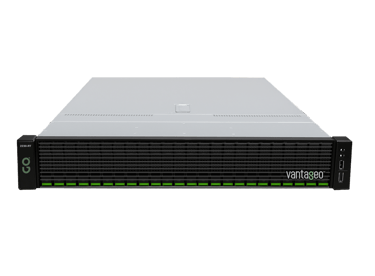

The Vantageo 2230-RT is a new-generation 1U 2-socket general rack server that supports two Intel® Xeon® 4th/5th generation scalable processors (Eagle Stream). Designed with a high-density, modular, and streamlined architecture, it delivers high performance, high reliability, easy expansion, and simplified management. This makes it ideal for Internet, cloud computing, big data, and virtualization applications.

High Performance and High Density

• Dual 3rd Gen Intel® Xeon® Scalable processors (up to 40 cores/CPU) with 3 UPI links (11.2GT/s).

• 32 DDR4 DIMM slots (3200MT/s) with Advanced ECC support.

• Supports up to 28 NVMe SSDs for high-speed I/O performance.

High Scalability and High Bandwidth

• Flexible storage: 41x 2.5" or 20x 3.5" + 4x 2.5" hot-swap bays (SAS/SATA/NVMe).

• 14 PCIe 4.0 expansion slots (including OCP 3.0) for GPUs, NICs, and accelerators.

• Supports four high-performance GPUs for accelerated workloads.

Easy Management Maintenance

• Hot-swappable drives, power supplies, and fans with 1+1/N+1 redundancy.

• RAID 0/1/5/6/10/50/60 with power-loss protection.

Intelligent Management

• Vantageo Server Suite for out-of-band monitoring (CPU, memory, storage, power).

• IPMI 2.0, SNMP, and Redfish integration for third-party management
