2240-RA

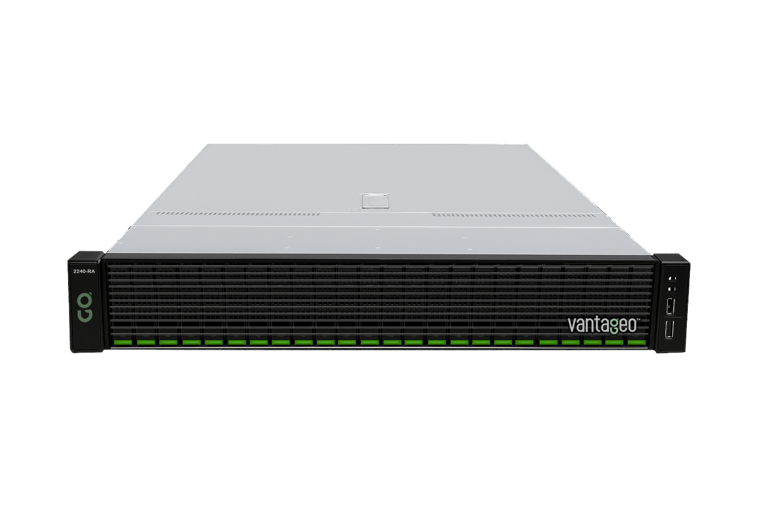

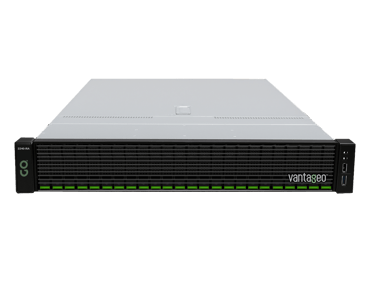

The Vantageo 2240-RA is a high-density 2U all-flash server designed for performance-critical workloads, supporting dual 4th/5th Gen Intel® Xeon® Scalable processors (Sapphire Rapids/Emerald Rapids). It combines massive storage capacity with cutting-edge PCIe Gen5 expansion for enterprise and data center applications.

High Performance and High Density

• Supports dual 4th/5th Gen Intel® Xeon® Scalable processors (up to 350W TDP).

• 32x DDR5 RDIMM slots (5600MT/s with Emerald Rapids, 4800MT/s with Sapphire Rapids).

• 24x front-accessible 2.5" NVMe (PCIe 5.0 U.2) + 2x rear 2.5" SATA hot-swap bays.

High Scalability and High Bandwidth

• 4x PCIe 5.0 slots (2x x16 for GPUs + 2x OCP 3.0).

• 3x 8-bay NVMe PCIe Gen5 backplanes for ultra-fast storage

Easy Management Maintenance

• Aspeed AST2600 BMC with IPMI 2.0, Redfish, and KVM-over-LAN.

• AMI UEFI BIOS with TPM and secure boot capabilities.

Energy Efficiency

• 2000W 80+ Platinum/Titanium redundant power supplies.

• 6x hot-swap fans with optimized airflow design
