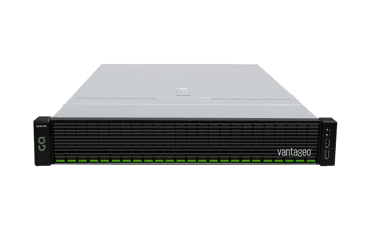

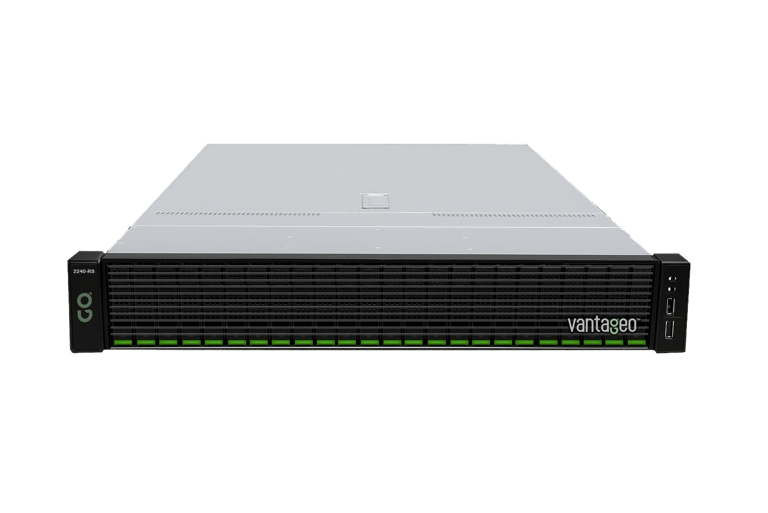

2240-RS

The Vantageo 2240-RS is a high-performance 2U rack server powered by 5th Gen Intel® Xeon® Scalable processors. It features a secure and reliable hardware-software architecture, delivering exceptional multi-core performance, high throughput, and advanced computing capabilities for AI, HPC, and enterprise workloads

High Performance and High Density

• Supports dual 5th Gen Intel® Xeon® Scalable processors with up to 64 cores per CPU.

• Accommodates up to 32 DDR5 DIMMs (4TB max) and 14 NVMe drives for accelerated data processing.

• GPU-ready with support for up to four dual-slot GPUs (Intel Flex Series/NVIDIA A100)

High Scalability and High Bandwidth

• Flexible storage: 12 front-accessible 3.5"/2.5" hot-swap bays (8x NVMe/SAS/SATA + 4x NVMe/SATA) and optional 2x rear NVMe/SATA bays.

• Nine PCIe 5.0 slots (including OCP 3.0) for high-bandwidth expansion.

Easy Management Maintenance

• ASMB11-iKVM with ASPEED AST2600 for remote monitoring.

• Control Center and hardware Root-of-Trust for secure infrastructure management.

Energy Efficiency

• 1+1 redundant 80 PLUS Titanium/Platinum power supplies (1600W/2600W).

• Enhanced air cooling (EVAC heatsink) and four high-efficiency system fans
